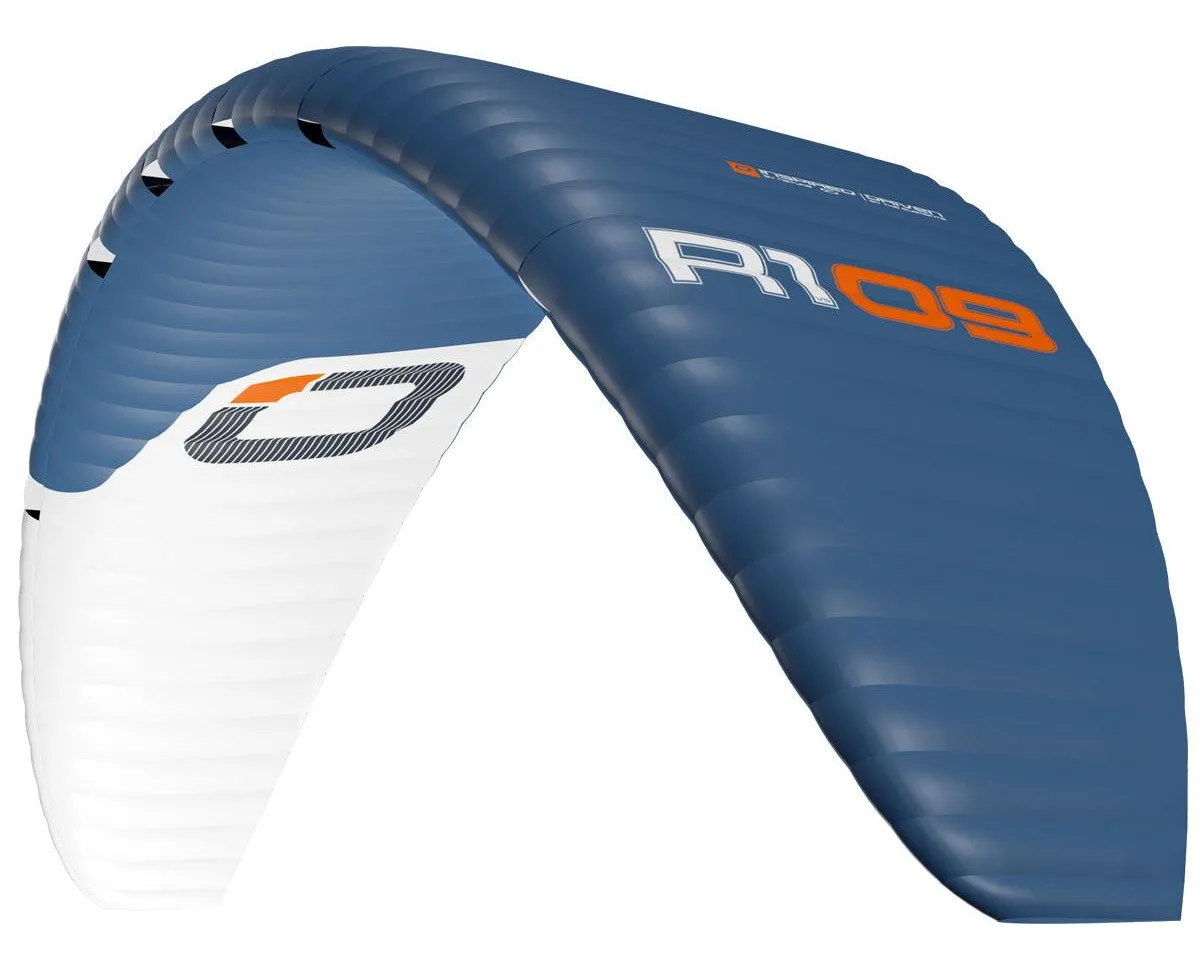

Ozone R1 V5 · 2026
1 / 6
Ozone

R1 V5 2026

racefoil
Compare with… Find similar Report an issue
SPECS BY SIZE
Size (m²) 8 9 10 11 14 15 19 21
Weight (kg) ⓘ 1.7 1.8 2.2 2.4 2.8 3 3.1 3.3
Aspect ratio ⓘ 6.5 6.5 7 7 7 7 7 7
Cells ⓘ 51 51 65 65 65 65 65 65
Projected area (m²) ⓘ 7.1 7.9 8.9 9.8 11.4 13.3 16.2 17.9
Wingspan (m) ⓘ 7.41 7.84 8.52 8.92 10.02 10.36 11.46 12.05
CONSTRUCTION
Arch
Foil ram air
Lines ⓘ
4
Bridle
Cascade
Kite-side ends ⓘ
front (center): knot · rear (steering): loop
TIMELINE
Full timeline

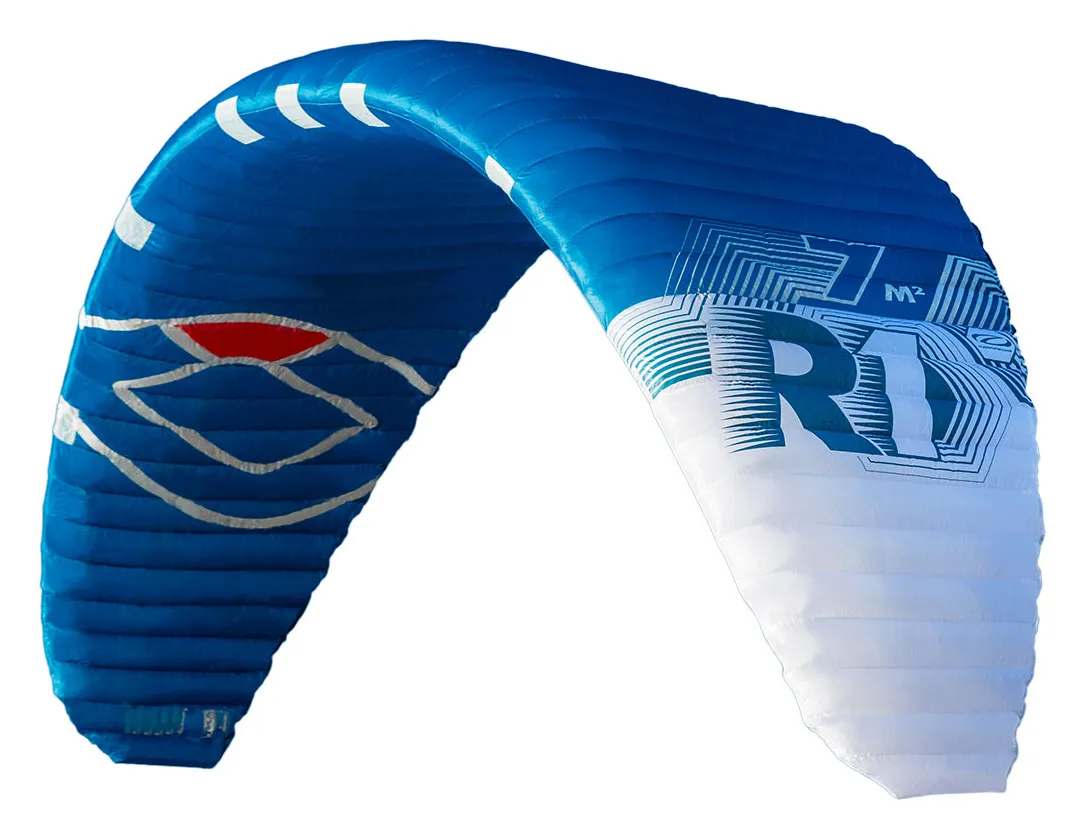

  1. Ozone R1 V1 2016

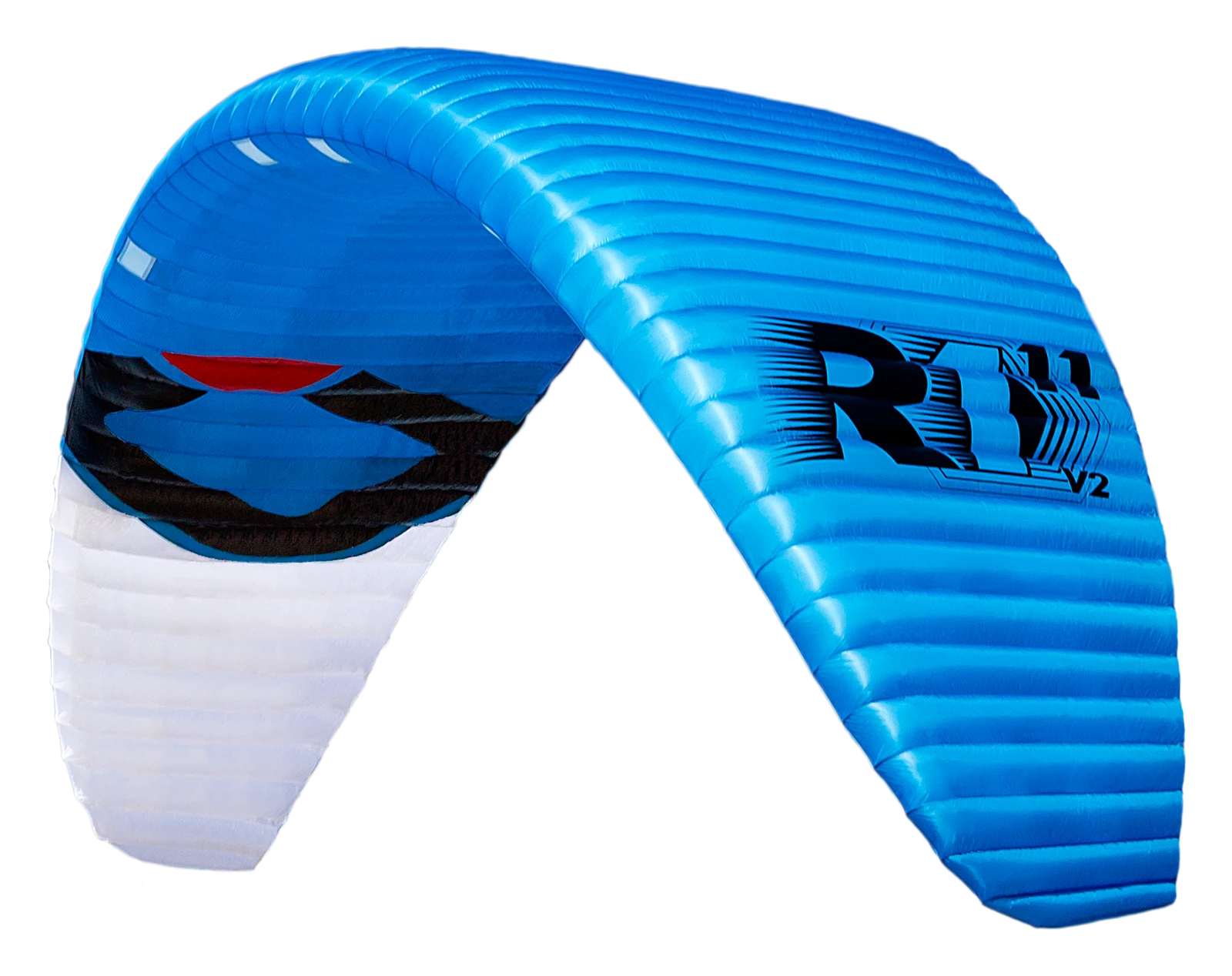

  2. Ozone R1 V2 2017
  3. 2018: no separate edition cataloged

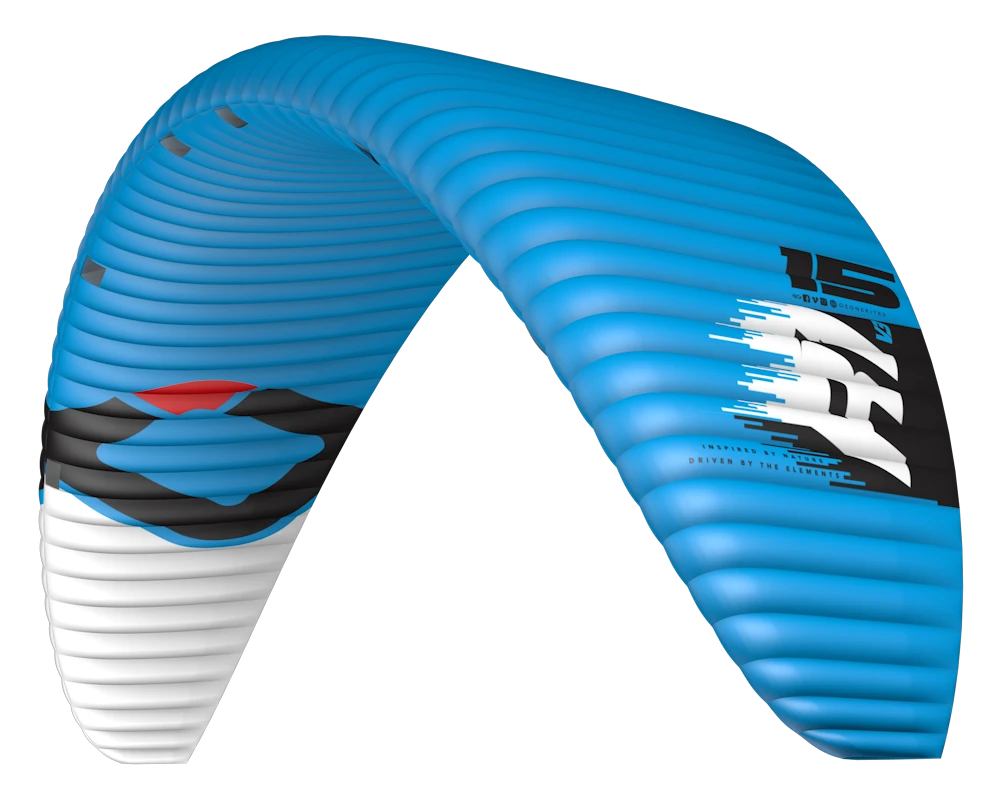

  4. Ozone R1 V3 2019
  5. 2020: no separate edition cataloged

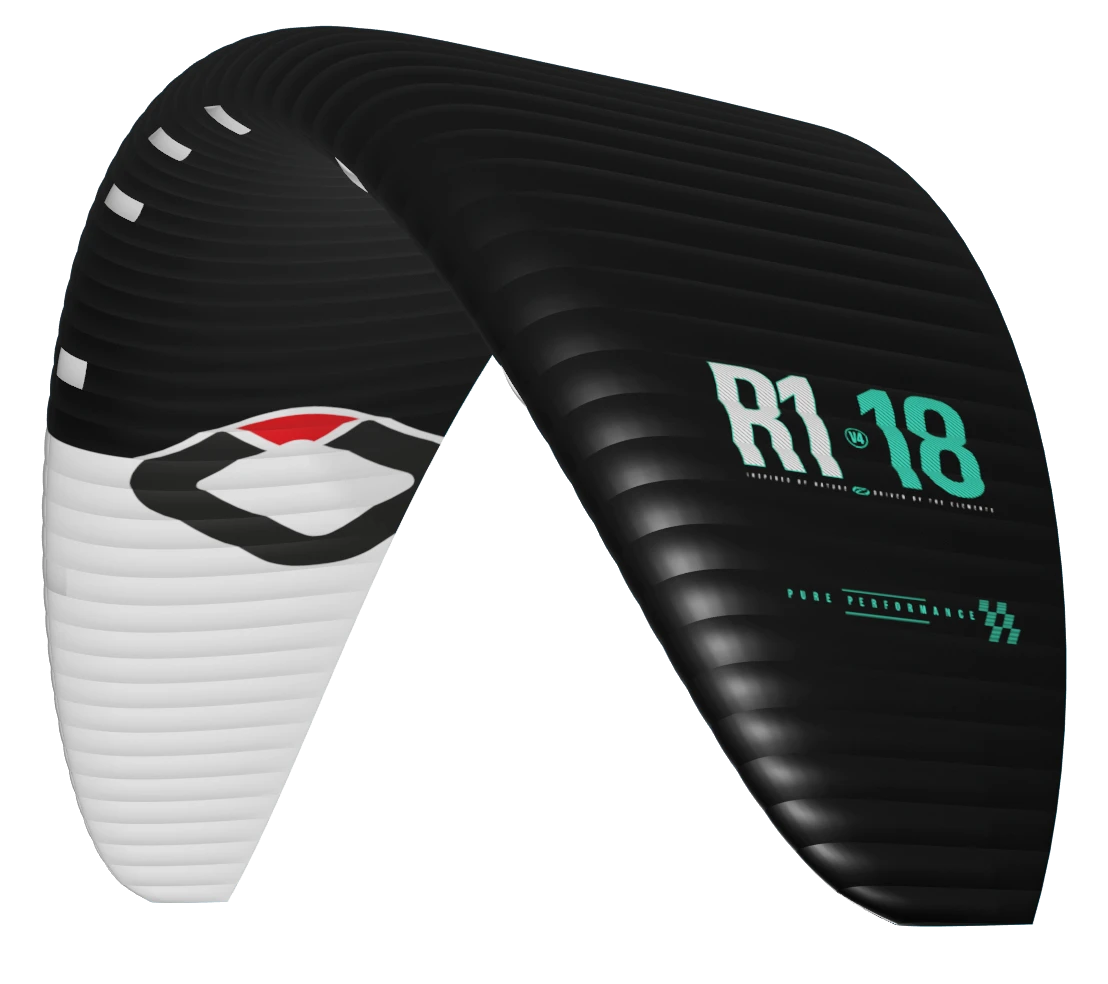

  6. Ozone R1 V4 2021
  7. 2022 to 2025: no separate edition cataloged
  8. Ozone R1 V5 2026
5 editions, 2016 to 2026
